104 Series Stamped Curved Blade T-Bar
Standard Features

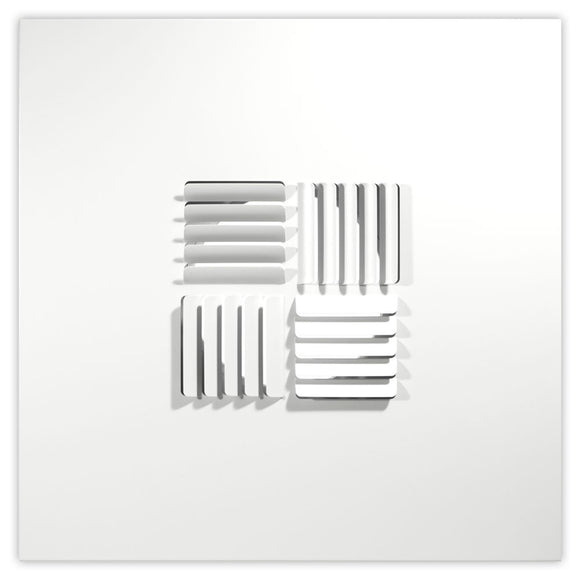

Stamped curved blade T-Bar diffuser with four way air pattern
Five air patterns available
2" ADC compliant round collar with bead for ease of installation
Standard collar diameter is 2” smaller than face(ex. 12×12-10)
Diffuser available in sizes 6"x6" through 18"x18"
Rust resistant pre-coat with durable powder finish
Soft White
Five air patterns available
2" ADC compliant round collar with bead for ease of installation
Standard collar diameter is 2” smaller than face(ex. 12×12-10)
Diffuser available in sizes 6"x6" through 18"x18"
Rust resistant pre-coat with durable powder finish
Soft White
Options
Air Patterns
Lever operated Multi-Shutter Damper
Lever operated Opposed Blade Damper
Square Collar
TVB - Thermal Vapor Blanket
NGD - Narrow ceiling grid dimples for 9/16" T-Rails, changes O.D. to 23 29/32"
Air Patterns
Lever operated Multi-Shutter Damper
Lever operated Opposed Blade Damper
Square Collar
TVB - Thermal Vapor Blanket
NGD - Narrow ceiling grid dimples for 9/16" T-Rails, changes O.D. to 23 29/32"
SUBMITTAL
PERFORMANCE DATA
REVIT FILES
- T-Bar Stamped Diffuser with Round Collar 6-12
- T-Bar Stamped Diffuser with Round Collar 14-18
- T-Bar Stamped Diffuser with Damper and Round Collar 6-14
- T-Bar Stamped Diffuser with Damper and Round Collar 15-18
- T-Bar Stamped Diffuser with Opposed Blade Damper and Round Collar 6-14T-BarStamped Diffuser with Opposed Blade Damper and Round Collar 15-18
