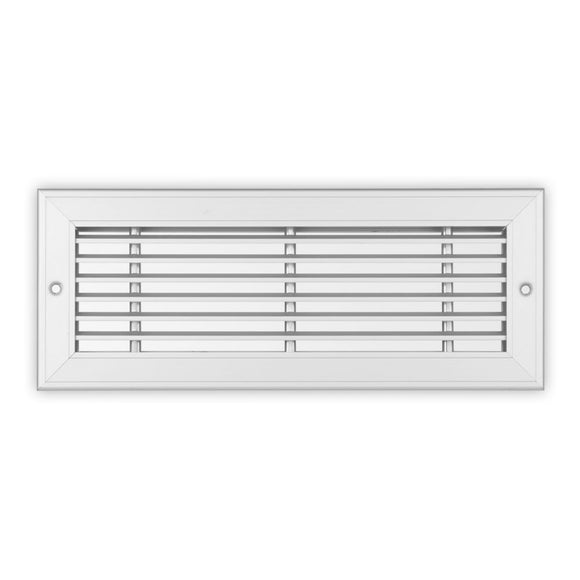

Aluminum Linear Bar - Sidewall Grilles

Standard Features
Extruded aluminum frame with signature line marks
Sidewall or Ceiling application
Available in lengths of up to 144" in one piece (may vary for shipping considerations)
Maximum available width is 14"
1/8" core blades run parallel to the longest dimension on 1/2" Centers
0° Deflection
Standard frame width 1-3/8"
White, Driftwood Tan or Anodized Finish

Options
Frame Option X = 1-1/4" Flange - Note when ordering if needed
Frame Option Y = 1" Flange - Note when ordering if needed
Diffuser w/ Air Deflection Grid
2 Way Blades
SUBMITTAL
