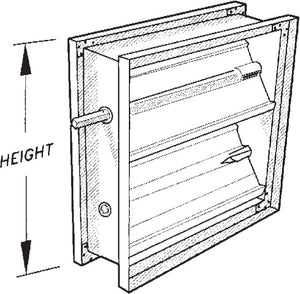

Parallel Volume Damper Low Leak 3000PLL-8X8

Parallel Volume Damper Low Leak 3000PLL-8X8

  • $249.61


h3.Standard Features * 16 gauge galvanized channel frame * Parallel blades are cee stiffened 16 gauge galvanized for strength and stability * Blades pivot on non-metallic celcon bushings * 1/2" square zinc plated steel pivot pins * 1/2" square zinc plated steel adjustable operating shaft extending up to 4" beyond the air control frame * Single blades on dampers with a height of 12" or less * Mill finish h3.Options * 3000 PLL - Low Leak Air Control Damper. Jamb seals (stainless steel), blade to blade neoprene seals, 3% maximum leakage with a pressure differential 3" W.C. * 3100 Series - Face and By-Pass dampers * Sleeve variations * 12 gauge galvaneal construction * Flat head and sill frame construction * Extended square operating shaft (extending 7-1/2" beyond the air control frame) * Round operating shaft (1/2" diameter) * Oil impregnated bronze bushings * Spring closed or spring open dampers * Outside mounting flange * Direct mount damper motors * Fractional and odd sizes available
